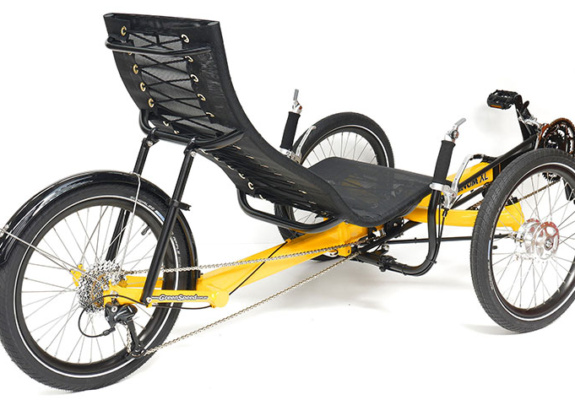

Greenspeed Magnum XL
Carrying over the same great features of the Magnum, the XL offers a bigger frame for riders in need of a larger platform. The XL is ideal for on and off-road riding, and can accommodate riders up to 180kg. The Magnum was launched in 2012, and has been our best seller since then. It retains the unique features of the earlier Magnum which made it so popular, the seat height and angle adjustment, plus the press-button quick release on the front wheels, plus the on road and off road capabilities. However, to strengthen the frame over the earlier Magnum, we are using a rectangular section main tube, 1st used on the Anura introduced in 2006, and recently on the GT20, introduced in 2016.This tubing is both stronger and lighter than the round tubing used on the original Magnum, plus it allows quick and easy adjustment of the boom for leg length without having to realign the cranks each time, and positively prevents the cranks from twisting under sudden acceleration. And rather than the “Ved” cross member of the early Magnums, the SD cross member is curved like the GT20, to allow the riders to stand closer to the seat, for easier entry and exit.
2023 colours are Fossil, Blue or Heath
To order: Greenspeed Magnum XL
Specifications
| Frame | Aluminium Alloy 7005 Folding |
|---|---|
| Width | 86 cm |
| Length | 168 to 193 cm |
| Height | 76-89 cms |
| Seat Height | 35 to 45 cm |
| Seat Angle | 30 to 48 degrees |
| Crank Height | 35 to 38 cm |
| X-seam range | 112 to 137 cm |
| Ground Clearance | 16 cm |
| Turning Circle | 4.0 m |
| Track | 80 cm |
| Wheelbase | 105 cm |
| Front Wheels | 20” Alloy rims with Stainless Steel Spokes & push button Q/R |
| Rear Wheels | 20” Alloy rim with Stainless Steel Spokes & Q/R |
| Tires | 20″ X 2.0″ (51-406) Schwalbe Big Apple, 35 to 70 psi |
| Gears | 27 speed |
|---|---|
| Cranks | Shun SS-ZO-300 52/42/30 x 165 mm |
| Cassette | 9 speed 11/34 |
| Front Derailleur | Micro Shift |
| Rear Derailleur | Shimano |
| Chain | YBN S9 |
| Shifters | Shimano Dura Ace 9 speed Bar End |
| Gear Range | 18 to 95” – 528% |
| Brakes | Disc Brake |
| Standard Equipment | Rear mudguard, safety flag |
| Optional Extras | Mirror, head rest, front mudguards, luggage rack |
| Rider weight Limit | 180 kg |
| Total Weight Limit | 200 kg |
| Trike Weight | 23kg |
| Boxed Size | 98 x 79 x 50 cm |
